MASTER series
electric - Control

Fabric

flame retardant
surface can be cleaned
mildew resistant
viewing angle 160°

Information

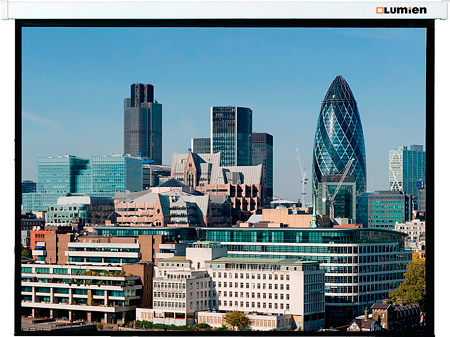

MASTER Control is a universal electrically operated projection screen for mounting on the wall or on the ceiling. Low energy consumption combined with high reliability ensures long and trouble-free work and reduces expenses for the technical maintenance.

Features:



  • slat bar fully rolls up into the case;
  • automatic stop of the fabric when rolling and unrolling guarantees a long lifespan and makes the usage more convenient
  • screens with width up to 3m are equipped with the quiet synchronized motor with a smooth starting-up
  • screens with width up to 3m are equipped with the long-lasting turbulent motor
  • screens with 16:9 aspect ratio have the extra black drop of 35-62 sm (the height depends on the model’s size) to achieve the ideal viewing height
  • screens with width from 3m are equipped with the metal caps for increased reliability and lifespan
  • square case is provided with the internal groove along all the length to prevent an inadvertent unrolling
  • remote control stops fabric at any height and changes the aspect ratio (supplied optionally)

The technical drawing and the table of models:






Product Code
Size of the
screen surface, sm
A x B
Viewing
area, sm
C x E
Diagonal of the
viewing area,
sm/inches
D
Black border
over the
perimeter, sm
G
Type
of the cap
Size
of the case,
sm
Weight, kg Retail
price
aspect ratio 1:1
LMC-100102 180 x 180 174 x 174 246/97 3 T1 9.6х9.6х206 10 $221
LMC-100103 203 x 203 197 x 197 279/110 3 T1 9.6х9.6х229 12 $223
LMC-100125 220 x 220 214 x 214 303/119 3 T1 9.6х9.6х246 13 $264
LMC-100105 244 x 244 236 x 236 334/131 3 T1 9.6х9.6х266 14 $336
LMC-100126 280 x 280 272 x 272 385/151 4 T2 10.4х10.4х292 22 $513
LMC-100106 305 x 305 297 x 297 420/165 4 T2 10.4х10.4х317 25 $584
aspect ratio 4:3
LMC-100107 128 x 171 122 x 165 205/81 3 T1 9.6х9.6х197 9 $184
LMC-100108 153 x 203 147 x 197 246/97 3 T1 9.6х9.6х229 11 $214
LMC-100109 183 x 244 175 x 236 294/116 4 T1 9.6х9.6х266 13 $307
LMC-100110 229 x 305 221 x 297 370/146 4 T2 9.4х9.4х317 17 $414
LMC-100111 274 x 366 266 x 358 446/176 4 T2 10.4х10.4х378 28 $671
LMC-100112 305 x 406 297 x 398 497/196 4 T2 10.7х10.7х418 32 $807
aspect ratio 16:9
LMC-100118 147 x 200 109 x 194 223/88 3/35 T1 9.6х9.6х226 10 $271
LMC-100113 184 x 220 119 x 212 243/96 4/61 T1 9.6х9.6х246 12 $379
LMC-100114 189 x 240 130 x 232 266/105 4/55 T1 9.6х9.6х266 13 $364
LMC-100115 202 x 280 153 x 272 312/123 4/45 T2 9.6х9.6х306 15 $479
LMC-100116 203 x 300 164 x 292 335/132 4/35 T2 9.4х9.4х312 17 $627
LMC-100123 259 x 400 221 x 392 450/177 4/34 T2 10.4х10.4х412 36 $836
aspect ratio 16:10
LMC-100127 115 x 180 105 x 168 198/78 5/6 T1 9.6х9.6х206 9 $227
LMC-100128 129 x 200 119 x 190 224/88 5 T1 9.6х9.6х226 10 $257
LMC-100129 141 x 220 131 x 210 248/97 5 T1 9.6х9.6х246 11 $307
LMC-100130 154 x 240 144 x 230 271/107 5 T1 9.6х9.6х266 13 $403
LMC-100131 179 x 280 169 x 270 319/125 5 T1 9.6х9.6х306 15 $493
LMC-100132 191 x 300 181 x 290 342/135 5 T2 9.4х9.4х312 16 $564
