ECO series
tripod - View

Fabric

flame retardant
surface can be cleaned
mildew resistant
viewing angle 160°

Information

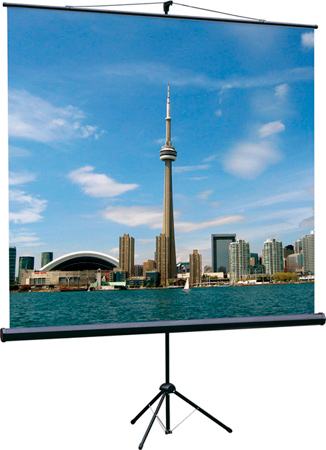

ECO View is a compact portable screen on a tripod. The advanced built–in keystone correction ensures that the picture is projected absolutely precisely.

Features:



  • unique opportunity to be mounted on the wall
  • black backing of the fabric protects the picture from the back ambient light
  • specially designed press-button mechanism for pulling-down and concealing the legs
  • telescopic rod / arm with controls for choosing the aspect ratio and the height of projection
  • comfortable transportation handle
  • free cover is included

The technical drawing and the table of models:






Product Code Viewing area, cm =
Size of the screen
surface, cm
A x B = C x E
Diagonal
of the viewing
area,
cm/inch
D
Length
of the leg, cm
N
Distance
from the floor
to the case, sm
P1/P2
Distance
from the floor
to the top of the  case, sm
Q1/Q2
Length
of the assembled
screen, sm
H
Weight, kg Retail price
aspect ratio 1:1
LEV-100101 150 х 150 212/84 47 32/100 187/248 160 7 $74
LEV-100105 160 х 160 226/89 47 32/100 187/248 171 8 $77
LEV-100102 180 х 180 255/100 67 45/128 225/308 190 10 $89
LEV-100103 200 х 200 283/111 67 45/124 245/324 210 11 $123
