MASTER series
manual - Picture

Fabric

flame retardant
surface can be cleaned
mildew resistant
viewing angle 160°

Information

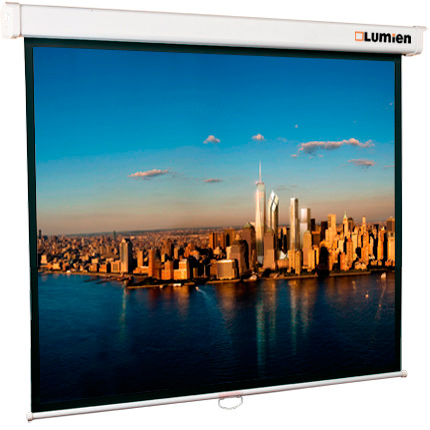

MASTER Picture is the universal manually operated wall projection screen. The spring mechanism allows the projection surface to be rolled and unrolled smoothly and provides a highly-detailed projected image.

Features:



  • classical square case provides durable and smooth work of the spring roll
  • due to the spring mechanism the screen can be easily extended and the projection fabric can be fixed at any height
  • screens with 16:9 aspect ratio are equipped with the extra black drop of 35-62 sm (the height depends on the model’s size) to achieve the ideal viewing height
  • screens over 3 m wide are provided with metal brackets for the improved reliability
  • easy and simple installation on the ceiling or on the wall

The technical drawing and the table of models:






Product Code Size of the
screen surface, sm
A x B
Viewing
area, sm
C x E
Diagonal of the
viewing area,
sm/inch
D
Overall black
border, sm
G
Type
of the cap
Length of the case,
sm
Weight, kg Retail price
aspect ratio 1:1
LMP -100101 127 x 127 121 x 121 171/67 3 T1 7х7х139 5 $46
LMP -100102 153 x 153 147 x 147 208/82 3 T1 7х7х165 5 $56
LMP -100103 180 x 180 174 x 174 246/97 3 T1 7х7х192 7 $71
LMP -100104 203 x 203 197 x 197 279/110 3 T1 7х7x215 8 $104
LMP -100105 213 x 213 207 x 207 293/115 3 T1 7х7х225 8 $125
LMP -100129 220 x 220 214 x 214 303/119 3 T1 8х8x232 9 $141
LMP -100106 244 x 244 236 x 236 334/131 4 T1 8х8х256 12 $179
LMP -100107 305 x 305 297 x 297 420/165 4 T2 10.4х10.4х318 23 $340
aspect ratio 4:3
LMP-100130 120 x 160 114 x 154 192/75 3 T1 7х7х172 6 $50
LMP -100108 128 x 171 122 x 165 205/81 3 T1 7х7х183 6 $52
LMP -100109 153 x 203 147 x 197 246/97 3 T1 7х7х215 7 $83
LMP -100110 183 x 244 175 x 236 294/116 4 T1 7х7х256 9 $160
LMP -100111 206 x 274 198 x 266 332/131 4 T2 9.4х9.4х283 14 $207
LMP -100112 229 x 305 221 x 297 370/146 4 T2 9.4х9.4х318 16 $250
LMP -100113 274 x 366 266 x 358 446/176 4 T2 10.4х10.4х379 27 $431
LMP -100114 305 x 406 297 x 398 497/196 4 T2 10.4х10.4х419 35 $457
aspect ratio 16:9
LMP -100121 173 x 220 109 x 194 223/88 3/61 T1 7х7х212 8 $136
LMP -100115 184 x 220 119 x 212 243/96 4/61 T1 7х7х232 8 $178
LMP -100116 189 x 240 130 x 232 266/105 4/55 T1 7х7х252 9 $200
LMP -100117 202 x 280 153 x 272 312/123 4/45 T2 9.4х9.4х293 14 $235
LMP -100118 203 x 300 164 x 292 335/132 4/35 T2 9.4х9.4х313 15 $400
LMP -100126 259 x 400 221 x 392 450/177 4/34 T2 10.4х10.4х413 28 $578
aspect ratio 16:10
LMP -100131 115 x 180 105 x 168 198/78 5/6 T1 7х7х192 7 $61
LMP -100132 129 x 200 119 x 190 224/88 5 T1 7х7х212 8 $101
LMP -100133 141 x 220 131 x 210 248/97 5 T1 7х7х232 9 $147
LMP -100134 154 x 240 144 x 230 271/107 5 T1 7х7х252 10 $164
LMP -100135 179 x 280 169 x 270 319/125 5 T2 9.4х9.4х293 12 $257
LMP -100136 191 x 300 181 x 290 342/135 5 T2 9.4х9.4х313 14 $293
